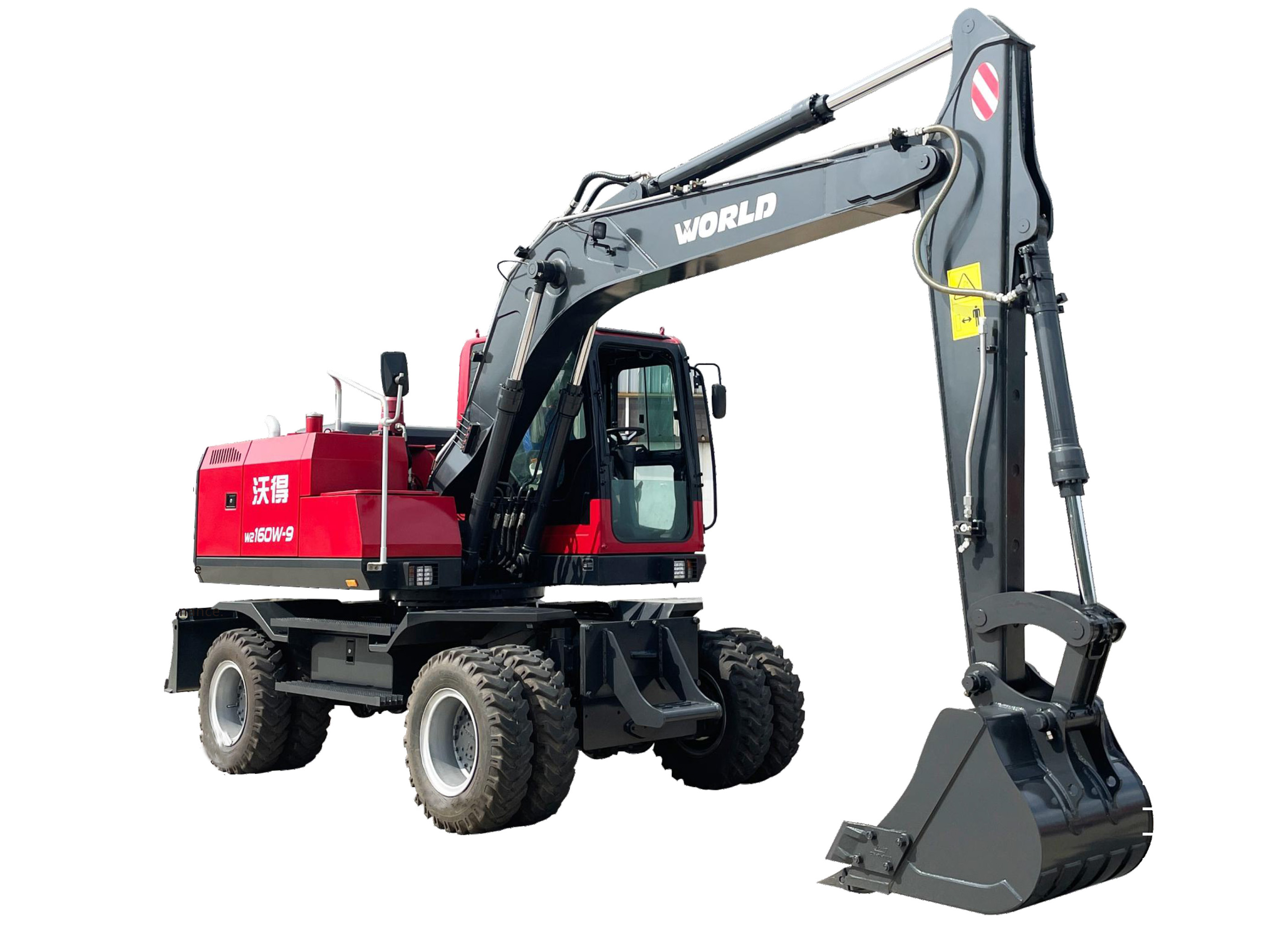

| Model | W2160W-9 Full Hydraulic |
| DIMENSIONS | |
| Overall Length | 7652 |
| Overall Width | 2533 |
| Overall Height | 3570 |
| Cab top height | 3281 |
| Track | 1944 |
| Spread of Axles | 2800 |
| Min Height Above Ground | 320 |
| Taik Radius | 2294 |
| Width of Bulldozing | 2495 |
| Rising distance of Bulldozing | 485 |
| Height of Bulldozing | 120 |
| RANGE OF OPERATION | |
| Max Digging Height | 8900 |
| Max Dumping Height | 6463 |
| Max Digging Depth | 4490 |
| Maximum vertical arm excavation depth | 3748 |
| Max Digging Reach | 8304 |
| Min Front Radius | 2532 |
| Maximum height at minimum turning radius | 6894 |
| Maximum ground excavation range | 8070 |
| TECHNICAL SPECIFICATION | |
| Model | W2160W-9 |
| Engine | 玉柴YC4FA140-T300 |
| Power/speed | 103KW/2200rpm |
| Volume of Bucket | 0.6m³ |
| Maximum torque/speed | 540N.m/1600-1800rpm |
| Main pump type | 轴向斜盘式变量柱塞双泵 |
| Maximum flow of main pump | 135×2L/min |
| Set Pressure of Main Overflow Valve | 31.4/34.3Mpa |
| Maximum Travel Speed | 36Km/h |
| Swing Speed of Platform | 12rpm |
| Gradeability | 35° |
| Engine oil | 11L |
| Fuel Tank Capacity | 260L |
| Hydraulic Tank Capacity | 184L |
